A rotary kiln turns at a walking pace - typically 0.5 to 5 revolutions per minute - and everything it weighs reaches the ground through four to eight bearings. Those bearings are trunnion bearings, and almost every serious kiln bearing problem is one of two things: the oil film was lost, or the shell started to move in its housing.
The kiln shell carries the riding ring, which rests on two or four support rollers. Each roller turns on a gudgeon, and the gudgeon turns in a trunnion bearing mounted on the concrete pier. There is no gearbox and no rolling element in the path - just a shaft, a film of oil and a shell.
Two arrangements are common:
In both cases the bearing surface is expected to be the sacrificial part, and to be softer than the gudgeon it carries. Kiln bearings are named by which end they serve: the drive-end (DE) bearings sit next to the girth gear and motor, and the non-drive end (NDE) bearings sit at the opposite end. The NDE trunnion carries the same radial load without the drive torque, and on a lime or cement kiln it is a common place for hot-shell and misalignment wear to show up first.
| Material | Suits | Watch out for |
|---|---|---|
| ZA303 zinc-based alloy | low-speed, heavy-load duty at moderate temperature | temperature above about 150 °C; keep within the duty window |
| Tin bronze | higher temperature, corrosive conditions, general kiln and mill duty | higher cost; can gall and seize if the film is lost |
| Aluminum bronze | the heaviest loads and shock | harder, poorer conformity - more demanding on alignment |
| Babbitt-lined steel shell | highest conformity and the best embeddability | lower load capacity and temperature limit than bronze |
In practice most kiln trunnion conversions move in one direction - from bronze or Babbitt to a zinc-based alloy such as ZA303 - because the duty is low speed and heavy load, which is exactly where the zinc-based alloy performs, and because the cost difference is substantial. That only works inside the duty window, and it is worth checking the numbers before ordering.
More on the material decision: Babbitt bearing shells explained and copper alloy castings and bronze bushings.

Most of the shells and pads we make are replacements, and most of those arrive as a worn part rather than as a drawing. The sequence is consistent:

Then the slower ones: fatigue cracking from misalignment and edge loading, dust contamination, and overheating from restricted oil flow.

Send us the worn bearing, the drawing, or the dimensions together with the kiln type, the load and the operating temperature, and we will come back with a material recommendation, a price and a lead time - including an honest view of whether the material you asked for is the right one.
The bearing that carries the gudgeon of a support roller. The kiln's riding ring rests on two or four support rollers, each turning in a trunnion bearing mounted on the pier, so the whole weight of the kiln reaches the foundation through these bearings.
It depends on duty. ZA303 zinc-based alloy suits low-speed, heavy-load duty at moderate temperature and costs much less; tin bronze suits higher temperatures and corrosive conditions; Babbitt-lined shells suit the highest speeds and the most conformable contact. Many kilns run happily on ZA303 pads.
Usually not enough nip or interference between the shell and the housing, worn or missing retaining keys and dowels, or a loosened housing fit. Once a shell starts to turn it wears the housing, and the repair becomes much larger than a bearing change.
Temperature and oil condition continuously in service, with a visual and clearance check at each kiln stop. Checking the contact pattern and re-checking alignment after any bearing or roller change is what prevents the next failure.
NDE stands for non-drive end. A rotary kiln has a drive end (DE) next to the girth gear and motor, and a non-drive end (NDE) at the opposite end. Both ends support rollers run in trunnion bearings, so the NDE bearing carries the same radial load as the DE bearing but without the drive torque, and it runs slightly cooler. On lime and cement kilns the NDE trunnion is a common place for misalignment and hot-shell wear to appear first.
Wear-resistant trunnion bearings, support-roller bearing pads and hollow-shaft bearings for rotary kilns, dryers and grinding mills.

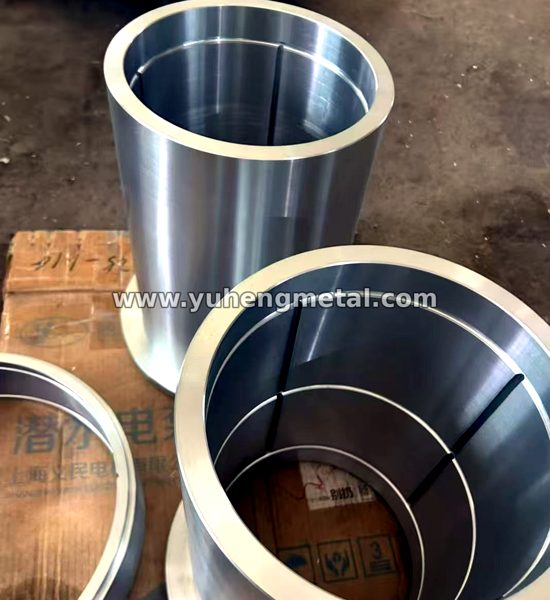

Trunnion sizes and lead time →High-strength ZA303 zinc-based alloy bearing shells and bushings with excellent load capacity, low friction and long service life - a cost-effective replacement for Babbitt metal.
